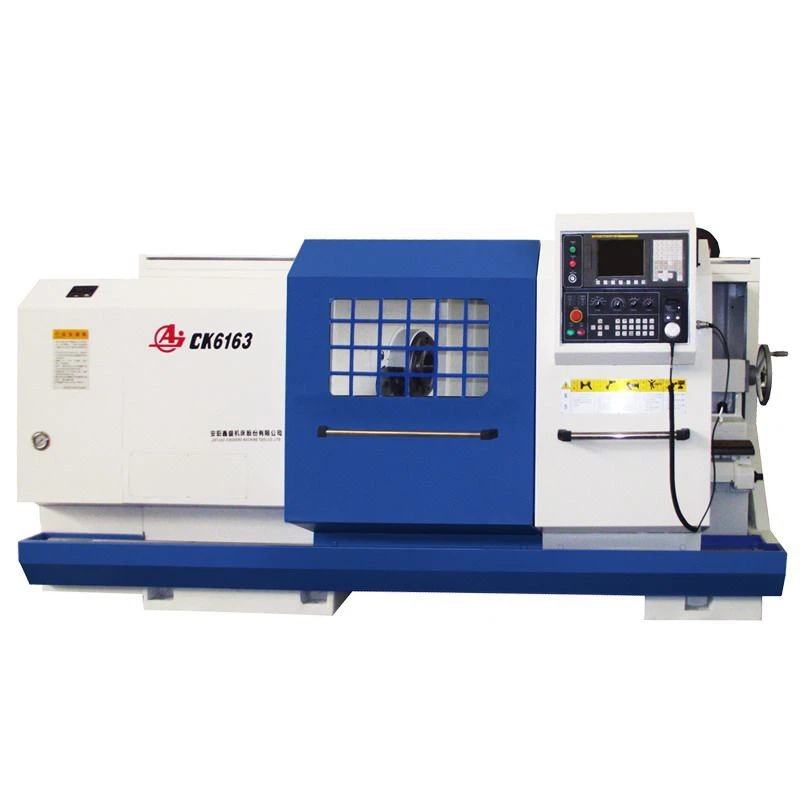

CK61 Series CNC Hlau Digitally-Contr Tshuab dhos tshuab cuab yeej
CK61 series ntawm tshuab dhos tshuab txaj yog lub thawv-zoo li tus qauv, txais cov txheej txheem siab cam khwb cia hlau (HT300) ib qho molding casting, tom qab kev kho mob thib ob, nws muaj kev ua haujlwm ruaj khov; kev taw qhia-txoj kev dav (550mm), zoo rigidity, anti-kev co muaj peev xwm; Ua tiav los ntawm nruab nrab-zaus hardening thiab machined los ntawm imported rail sib tsoo tshuab, kom lub neej ntev, siab precision thiab zoo tuav.
Lawv yog cov versatility siab, high efficiency, tsawg inferiority thiab zoo conformability. Yog li yuav tsum tau siv dav hauv ntau yam kev lag luam, xws li kev lag luam tsheb, kev lag luam roj av, kev lag luam tub rog, thiab lwm yam.
Lawv yog cov versatility siab, high efficiency, tsawg inferiority thiab zoo conformability. Yog li yuav tsum tau siv dav hauv ntau yam kev lag luam, xws li kev lag luam tsheb, kev lag luam roj av, kev lag luam tub rog, thiab lwm yam.
CNC tshuab dhos Turning tshuab
AC servo lub cev muaj zog yog saws nyob rau hauv kev noj zaub mov, thiab tailstock yog txav hluav taws xob. Yog li cov tshuab no yog cov cuab yeej zoo tshaj plaws rau qhov loj thiab nruab nrab qhov nyuaj workpieces precision machining hauv baches.
Multifunctional CNC tshuab dhos
Lawv yog cov versatility siab, high efficiency, tsawg inferiority thiab zoo conformability. Yog li yuav tsum tau siv dav hauv ntau yam kev lag luam, xws li kev lag luam tsheb, kev lag luam roj av, kev lag luam tub rog, thiab lwm yam.
CK61 Series CNC tig tshuab dhos tshuab cuab yeej yog lub tshuab computer-tus lej tswj tshuab cuab yeej tshwj xeeb hauv cnc tig machining, suav nrog taper tig, nyuaj tig, kheej kheej tiam, tig, txiav tawm, knurling, drilling, grooving, thiab lwm yam. CNC tshuab dhos ua haujlwm nrog cov lus qhia tsim qauv thiab cov kev pab cuam los txhim kho cov khoom tsim tau thiab qhov tseeb ntawm CNC machining xav tau.
Cov txiaj ntsig ntawm CK61 Series CNC TURNING tshuab dhos tshuab
Fully Automated
Txij li thaum CNC ua haujlwm ntawm cov lus hauv computer, koj tsis xav tau tib neeg qhia nws yuav ua li cas los ntawm kev txav nws cov spindles ncig. Peb tuaj yeem tsim ntau pua lossis ntau txhiab qhov zoo sib xws nrog tsuas yog ib qho tsim. Thaum tus qauv tsim los ntawm CAD software tau muab tso rau hauv lub tshuab, koj tsis tas yuav saib xyuas nws, lub tshuab yuav ua raws li tus qauv tsim.
Ntau yam
Automated CNC tshuab dhos machining yog ntau yam, nws tuaj yeem tsim yuav luag txhua yam ntawm cov khoom lossis cov khoom lag luam, los ntawm cov khoom siv kho mob mus rau qhov chaw pib mus rau aerospace qhov chaw thiab cov cuab yeej precision, txhua yam tuaj yeem ua tau sai thiab pheej yig hauv peb lub khw CNC tshuab dhos precision.
Zoo heev raug
Thaum kev siv tes ua haujlwm koom nrog, muaj lub sijhawm ntawm tib neeg yuam kev - qhov tseeb tuaj yeem raug kev txom nyem. Qhov no yeej tsis muaj teeb meem nrog lub khw CNC tshuab dhos thiab cov kws paub txog kev ua haujlwm ntawm CNC tshuab dhos. Peb muab 2 mus rau 9 axis machining nrog peb CNC tshuab dhos los muab ntau yam kev xaiv rau kev tsim khoom ntim siab.
Efficiency Uas Txuag Nyiaj
Los ntawm kev siv lub tshuab dhos tshuab xws li Salco Global koj tuaj yeem txiav cov sij hawm tsim khoom thiab nqi. Peb muab kev ua haujlwm siab, ua siab ntev, teeb tawm ntau lawm uas tuaj yeem txhim kho lub sijhawm xa khoom thiab txuag koj nyiaj.
Hom CK61 Series CNC TURNING tshuab dhos tshuab
Electric Discharge CNC Tshuab
Hluav taws xob tso tawm CNC tshuab tseem hu ua lub tshuab hluav taws xob CNC. Lawv yog hom tshwj xeeb ntawm CNC tshuab uas siv hluav taws xob hluav taws xob los tswj cov ntaub ntawv kom zoo li qhov xav tau.Electrical discharge muaj qhov cuam tshuam tsis zoo, txhais tau tias nws tuaj yeem degrade cov ntsiab lus los ntawm qhov nws tau nthuav tawm. Lub tshuab hluav taws xob tso tawm CNC siv qhov zoo ntawm qhov no los ntawm kev tsim cov hluav taws xob tswj kom rov tsim cov ntaub ntawv. Cov workpieces tau muab tso rau nruab nrab ntawm sab saum toj thiab hauv qab ntawm electrode. Lub khoos phis tawj tom qab ntawd txiav txim siab tus nqi hluav taws xob tawm ntawm cov electrodes tsim.
Sib tsoo tshuab CNC
Lub tshuab sib tsoo CNC yog cov cuab yeej ua tau zoo uas siv lub log tig los txiav cov hlau kom deb ntawm cov hlau. CNC sib tsoo tshuab feem ntau yog siv rau camshafts, pob bearings, kis tau tus mob shafts, thiab lwm yam ua hauj lwm daim, uas yuav tsum tau ib tug raug thiab raug tiav. Ntau daim ua siv lub tshuab CNC sib tsoo yog cylindrical.
CNC tshuab nrog Automatic Tool Hloov
Lub tshuab tsis siv neeg hloov pauv CNC tshuab tsim lub tshuab lub cuab yeej nqa lub peev xwm thiab ntau lawm tus nqi thiab txhim kho lub tshuab muaj peev xwm ua haujlwm nrog ntau yam cuab yeej. Hom CNC tshuab no hloov cov cuab yeej sai heev thiab ua haujlwm tau zoo thiab hloov pauv cov cuab yeej tawm lossis cov cuab yeej tawg.Lub tshuab CNC no txo qis lub sijhawm tsis muaj txiaj ntsig thaum lub sijhawm machining. Lub tshuab CNC nrog cov cuab yeej tsis siv neeg hloov pauv yog ib kauj ruam zoo rau kev ua tiav automation.
Daim ntawv thov ntawm CK61 Series CNC TURNING tshuab dhos tshuab
Electronics Kev Lag Luam
Automotive Kev Lag Luam
Aerospace Kev Lag Luam
Kev lag luam kho mob
Cheebtsam ntawm CK61 Series CNC TURNING tshuab dhos tshuab
Lub txaj
Lub txaj yog cov qauv kab rov tav loj lossis nqaj uas siv los txhawb lwm qhov ntawm lub tshuab dhos zoo li lub taub hau thiab tailstock. Nrog rau kev zam ntawm woodworking lathes, yuav luag txhua lub tshuab dhos muaj lub txaj. Nws yog lub platform ntev uas cov khoom no tau mounted.
Headstock
Pom ntawm qhov kawg ntawm lub txaj yog lub taub hau. Thaum clamped mus rau qhov kawg, lub headstock muab lub zog tig rau lub tshuab dhos txoj haujlwm. Nws muaj cov bearings siv los ntawm lub tshuab dhos los tig lub workpiece tiv thaiv lub cuab tam me ntsis.
Tailstock
Raws li koj tau twv, lub tailstock yog pom nyob rau ntawm qhov kawg ntawm lub tshuab dhos rov qab mus rau headstock. Kuj tseem hu ua "lub taub hau xoob," lub tailstock nta lub thoob tsis tig uas tuaj yeem siv rau ntau lub hom phiaj, xws li tuav cov cuab yeej lossis txhawb nqa cov khoom ua haujlwm thaum lawv tig.
Tsheb thauj mus los
Lathes kuj tseem muaj lub tsheb thauj khoom, uas pom nyob nruab nrab ntawm lub taub hau thiab tailstock. Lub carriage yog lub luag hauj lwm rau kev taw qhia lub cuab tam me ntsis raws li nws txiav los yog lwm yam manipulates lub workpiece.
Ob txhais ceg
Tau kawg, ob txhais ceg yog cov qauv ntsug ntawm lub tshuab dhos uas muab qhov ua haujlwm siab. Lathes tsis siv txhua yam ntawm ob txhais ceg, txawm li cas los xij. Vim tias lawv qhov hnyav hnyav, cov lathes qib lag luam feem ntau muaj ob txhais ceg uas ntsia hlau rau hauv pem teb uas nws tau muab tso rau. Los ntawm bolting ob txhais ceg nqes, lub tshuab dhos yuav nyob ruaj khov txawm nyob rau hauv hnyav load.
Hla Slide
Tus ntoo khaub lig swb yog ib qho khoom siv pom nyob rau sab saum toj ntawm lub tshuab dhos uas tso cai rau cov cuab yeej xaub rov qab thiab tawm mus.
Saddle
Pom nyob rau sab saum toj ntawm lub tshuab dhos yog lub eeb. Technically, lub eeb yog ib feem ntawm lub carriage. Featuring H zoo, nws yog lub luag haujlwm rau kev txhawb nqa hla swb txav.
Apron
Lub apron yog ib feem ntawm lub tshuab dhos uas yog clamped rau lub eeb. Nws yog tsim los tuav lub zog, levers thiab lwm yam khoom uas thawb tus ntoo khaub lig swb. Nrog rau lub eeb, lub apron yog ib qho tseem ceeb ntawm lub tsheb thauj khoom, uas tau hais los saum toj no, yog siv los coj lub tshuab dhos lub cuab yeej me ntsis.
Yuav ua li cas xaiv CK61 Series CNC TURNING tshuab dhos tshuab
Txiav txim siab rau lub Hoobkas
Hom CNC tshuab xav tau nyob ntawm qhov hnyav ntawm kev ua haujlwm. Yog hais tias qhov chaw yog qhov yooj yim ces ib tug 3-axis milling tshuab los yog CNC tshuab dhos tej zaum yuav zoo txaus. Txawm li cas los xij, raws li qhov nyuaj nce ntxiv, nws ua tau zoo dua kom muaj cov cuab yeej siv uas tuaj yeem tshuab feem ntau hauv ib qho teeb tsa. Tsib-axis CNC tshuab yog qhov zoo tshaj plaws rau hom haujlwm no. Lwm cov chav kawm ntawm cov khoom yuav tsum tau tshwj xeeb CNC tshuab. Piv txwv li, yog tias yuav tsum muaj ntau txhiab me me, nyuaj, cylindrical qhov chaw, lub hom phiaj tsim Swiss tshuab dhos yuav yog qhov kev xaiv zoo dua.
Optimize tshuab nqi
Tus nqi feem ntau yog qhov tseem ceeb tshaj plaws thaum xaiv CNC tshuab. CNC tshuab feem ntau ho kim dua li phau ntawv tshuab. Ntxiv rau qhov no, tus nqi ntawm CNCs txawv heev nyob ntawm ntau yam. Cov yam tseem ceeb no tuaj yeem suav nrog tus nqi ntawm cov cuab yeej, cov tshuab cua txias, nti conveyors, bar feeders, thiab cov cuab yeej hloov pauv tsis siv neeg. Xyuas kom tseeb tias tsuas yog cov add-ons yuav tsum tau yuav. Piv txwv li, lub nti conveyor tsis tsim nyog yog tias tsuas yog me me ntawm cov khoom raug tshem tawm.
Paub meej tias muaj Spare Parts
Zoo li txhua lub tshuab, CNC tshuab yuav tsum tau khaws cia tsis tu ncua kom ntseeg tau tias lawv ua haujlwm zoo. Vim li no, nws yog ib qho tseem ceeb uas yuav tau xaiv lub tshuab uas muaj, tsawg kawg, ib qho kev pab txhawb nqa hauv zos uas khaws cov khoom seem feem ntau xav tau. Qhov no tseem ceeb dua yog tias lub tshuab tawg, vim tias txhua teev ntawm kev poob qis ua rau poob nyiaj tau los. Kev txawj ntse thiab siv tau yooj yim kev txhawb nqa kuj tseem ceeb heev. Qee lub tuam txhab them nyiaj ntxiv rau lawv cov kws tshaj lij kom hu xov tooj. Qhov no zoo tsim nyog tus nqi thaum xaiv CNC tshuab.
Npaj Tshuab Chaw
CNC tshuab siv ntau qhov chaw, tshwj xeeb tshaj yog cov khoom siv xws li nti conveyors thiab cov cuab yeej hloov pauv tau ntxiv rau lub tshuab, yog li nws yuav tsum tau npaj ua ntej. Lwm qhov yuav tsum tau xav txog yog lub tshuab hnyav. Cov tshuab CNC loj loj yog qhov hnyav hnyav thiab xav tau lub pob zeb hauv pem teb uas tsim los txhawb lawv qhov hnyav. Nws yog qhov tsim nyog rau kev siv zog rub lub Hoobkas npaj kom paub meej tias lub hauv paus muaj zog txaus thaum xaiv CNC tshuab.
Paub meej tias yuav tsum muaj fais fab
CNC tshuab yog lub zog tshaib plab thiab feem ntau khiav ntawm 3-theem fais fab. Nws yog ib qho tseem ceeb kom ntseeg tau tias lub zog txaus txaus rau lub tsev los ua haujlwm rau cov khoom siv tshiab. Nws tseem tsim nyog rau kev siv zog kom paub meej tias kev siv hluav taws xob tam sim no. Tej zaum yuav muaj lub zog txaus rau lub tsev thaum tag nrho cov tshuab uas twb muaj lawm tab tom khiav, tab sis ntxiv CNC tshiab tuaj yeem thawb kev noj ntau dua li muaj.
Tshuab Tooling
Yog hais tias muaj ntau yam, complex qhov chaw yog machined nws tej zaum yuav muaj txiaj ntsig los ntxiv cov cuab yeej hloov pauv tsis siv neeg rau lub tshuab. Qhov no tso cai rau kev ua haujlwm tsis tu ncua yam tsis muaj kev cuam tshuam tus neeg teb xov tooj. Piv txwv li, thaum lub CNC ua tiav machining ib tug feature uas yuav tsum tau ib lub cuab tam, nws yuav tsum tau programmed kom sai retrieve lub cuab tam uas yuav tsum tau rau cov txheej txheem tom ntej ntawm nws tus kheej es tsis txhob tos tus neeg teb xov tooj.
Kev ua haujlwm sib txawv ntawm CK61 Series CNC TURNING tshuab dhos tshuab
Tig
Kev lag luam feem ntau ua rau ntawm lub tshuab dhos tshuab, kuj yog ib qho ntawm cov txheej txheem machining ntau tshaj plaws los tsim CNC tig qhov chaw. Hauv kev ua haujlwm tig, cov khoom siv ntau dhau ntawm cov khoom lag luam yuav raug tshem tawm los ntawm lub tshuab txiav tawm ntawm qhov chaw ua haujlwm kom tau txais cov khoom siv cylindrical ntawm qhov xav tau thiab qhov loj me. Cov pub yog txav raws lub axis ntawm kev sib hloov ntawm lub chuck, txo txoj kab uas hla ntawm lub cylindrical daim.
Kev ntsib
Facing yog txheej txheem machining uas lub ntsej muag lub ntsej muag tshem tawm cov khoom siv los tsim cov chaw tiaj tus ntawm qhov kawg ntawm lub workpiece. Qhov kev ua haujlwm no yog ua los ntawm kev pub cov cuab yeej perpendicular mus rau axis ntawm kev sib hloov ntawm chuck.
tho txawv
Kev tho txawv yog txheej txheem ntawm kev tshem tawm cov khoom los ntawm lub qhov ntawm lub workpiece kom nthuav dav lub qhov uas muaj nyob, qhov dhuav siv kev pab los ntawm ib qho cuab yeej txiav. Yuav tsum muaj cov qhov uas tau drilled ua ntej ua haujlwm tho txawv.
Drilling
Drilling yog txheej txheem ntawm kev ua qhov hauv qhov chaw ua haujlwm nrog kev siv lub laum, uas yog tuav hauv lub tailstock thiab kev ua haujlwm drilling yog ua los ntawm kev ua kom cov cuab yeej drilling tawm tsam cov khoom lag luam los ntawm kev sib hloov ntawm cov tailstock.
Knurling
Knurling yog txheej txheem ntawm kev ua indentation (lub caij so lossis kev nyuaj siab) ntawm tus ciam teb ntawm ib qho chaw ua haujlwm los ntawm cov cuab yeej knurling, uas yog nias tawm tsam txoj haujlwm los ua haujlwm knurling. Kev ua haujlwm knurling tuaj yeem muab kev tuav zoo rau txoj haujlwm.
Chamfering
Chamfering yog txheej txheem ntawm beveling qhov kawg kawg ntawm ib lub workpiece, tshem tawm cov burrs, thiab tiv thaiv qhov kawg ntawm ib feem ntawm kev puas tsuaj, thiab kom zoo zoo.
Yuav ua li cas kom tswj tau CK61 Series CNC TURNING tshuab dhos tshuab
Qhov tseem ceeb ntawm kev saib xyuas tsis tu ncua
Kev saib xyuas tsis tu ncua yog qhov tseem ceeb rau kev ua haujlwm du thiab ua haujlwm ntev ntawm CNC tshuab dhos tshuab. Kev tsis saib xyuas kev saib xyuas tuaj yeem ua rau muaj qhov raug txo qis, nce lub sijhawm poob qis, thiab kev kho tus nqi kim. Los ntawm kev ua raws li lub sijhawm saib xyuas kev ua haujlwm, koj tuaj yeem txo qhov kev poob siab tsis txaus ntseeg thiab ua kom zoo tshaj plaws ntawm koj lub tshuab CNC tshuab dhos.
Teem caij Lubrication thiab ntxuav
Kev lubrication kom zoo yog qhov tseem ceeb rau txo kev sib txhuam thiab hnav hauv CNC tshuab dhos tshuab. Ua raws li cov chaw tsim khoom cov lus qhia txhawm rau txiav txim siab cov lubricants tsim nyog thiab lub sijhawm rau lubrication. Tsis tu ncua ntxuav thiab tshuaj xyuas lub tshuab cov khoom, xws li chuck, cov cuab yeej tuav, thiab cov ntxaiv, kom tshem tawm cov av, khib nyiab, thiab cov dej txias uas yuav cuam tshuam rau kev ua haujlwm. Peb tuaj yeem muab cov roj nplua nyeem tsim nyog rau koj thiab cov neeg ua haujlwm tu, kom ntseeg tau tias koj lub tshuab qhov tseem ceeb ntawm lub tshuab.
Calibration thiab Alignment
Qhov tseeb calibration thiab sib dhos yog qhov tseem ceeb rau kev tswj xyuas qhov tseeb ntawm CNC tshuab dhos tshuab. Lub sijhawm tshawb xyuas thiab kho qhov kev sib raug zoo ntawm lub tshuab axes, tailstock, thiab cov cuab yeej turret kom ntseeg tau tias lawv tau zoo sib xws. Nws tseem yog ib qho tseem ceeb rau calibrate lub tshuab ntsuas cov tshuab, xws li cov encoder thiab linear scales, los lav qhov tseeb positioning.can pab koj calibrating thiab aligning koj CNC tshuab dhos tshuab, xyuas kom meej thiab meej tau.
Kev tshuaj xyuas hluav taws xob
Lub tshuab hluav taws xob ntawm lub tshuab CNC tshuab dhos ua rau muaj kev cuam tshuam rau ntau yam teeb meem, xws li kev sib txuas xoob, cov xaim puas, thiab cov khoom tsis zoo. Tsis tu ncua tshuaj xyuas lub tshuab hluav taws xob rau cov cim ntawm hnav, overheating, los yog xoob kev sib txuas. Ua tib zoo saib xyuas lub tshuab tswj vaj huam sib luag, lub cev muaj zog tsav, thiab lub zog hluav taws xob. Yog tias koj ntsib teeb meem hluav taws xob, nws yog ib qho tseem ceeb kom daws tau lawv tam sim ntawd kom tsis txhob muaj kev puas tsuaj ntxiv. tuaj yeem muab koj cov khoom siv hluav taws xob txhim khu kev tshuaj xyuas thiab kho, ua kom muaj kev nyab xeeb thiab ua haujlwm zoo ntawm koj lub tshuab CNC tshuab dhos.
Software hloov tshiab thiab thaub qab
CNC tshuab dhos tshuab cia siab rau sophisticated software rau programming thiab ua haujlwm. Nws yog ib qho tseem ceeb uas yuav tau ua kom lub tshuab software mus txog hnub tim nrog qhov tseeb versions thiab thaj ua rau thaj uas muab los ntawm cov chaw tsim khoom. Kev hloov kho software feem ntau suav nrog kev kho kab mob, kev txhim kho kev ua tau zoo, thiab cov yam ntxwv tshiab uas tuaj yeem txhim kho kev ua tau zoo thiab muaj peev xwm ntawm koj lub tshuab. Tsis tas li ntawd, tsis tu ncua rov qab kho koj lub tshuab cov kev pab cuam, cov kev txwv, thiab kev teeb tsa los tiv thaiv cov ntaub ntawv poob thaum muaj kev npaj txhij txog tsis ua haujlwm. tuaj yeem pab koj hloov kho koj lub tshuab software thiab siv cov kev daws teeb meem txhim khu kev qha los tiv thaiv koj cov ntaub ntawv tseem ceeb.
Hoobkas duab
daim ntawv pov thawj
FAQ
Q: Cov cuab yeej twg siv rau hauv lub tshuab dhos?
Q: Dab tsi yog qhov cuab yeej so ntawm lub tshuab dhos hu ua?
Q: Dab tsi yog CNC tshuab dhos cuab yeej?
Q: Dab tsi yog cov cuab yeej siv hauv tshuab dhos?
Q: Dab tsi yog qhov txawv ntawm CNC tshuab dhos thiab lub tshuab dhos tsis tu ncua?
Q: Yuav ua li cas xaiv lub tshuab dhos?
Q: Vim li cas CNC zoo dua tshuab dhos?
Q: Dab tsi yog CNC cuab yeej tuav?
Q: Lub tshuab cuab yeej twg yog lub npe hu ua niam tshuab cuab yeej?
Tshuab dhos tshuab yog lub npe hu ua leej niam ntawm tag nrho cov tshuab cuab yeej rau ib qho laj thawj tshwj xeeb, uas yog tias lub tshuab dhos hnyav yog thawj lub tshuab cuab yeej uas coj mus rau kev tsim khoom ntawm lwm cov cuab yeej siv tshuab. Thaum lub sij hawm kev lag luam kiv puag ncig, lathes hloov zuj zus mus rau hauv hydraulic tshuab dhos tshuab uas muaj thicker, nruj dua qhov chaw.
Q: Dab tsi yog qhov txawv ntawm cov cuab yeej siv tshuab thiab cov cuab yeej txiav?
Q: Yuav ua li cas xaiv CNC cuab yeej?
Q: Cov cuab yeej twg feem ntau siv rau kev ua haujlwm ntawm CNC tshuab dhos?
Q: Yuav ua li cas koj xaiv cov cuab yeej txiav tsim nyog rau CNC tshuab dhos ua haujlwm?
Q: Kuv yuav xaiv cov cuab yeej tshuab dhos li cas?
Q: Dab tsi yog qhov txawv ntawm CNC tshuab dhos thiab CNC tig tshuab?
Q: Dab tsi yog qhov txawv ntawm CNC tshuab dhos thiab lub tshuab dhos tsis tu ncua?
Q: Muaj pes tsawg hom CNC tshuab dhos tshuab muaj?
Q: Vim li cas CNC zoo dua tshuab dhos?
Q: Kuv yuav tsum tsis txhob siv lub tshuab dhos?
Q: Dab tsi yog qhov txaus ntshai ntawm CNC lathes?
| Yam khoom | UNIT | PAB/CKP/CKJ6163 | PAB/CKP/CKJ6180 | PAB/CKP/CKJ6194 | |||||
| Muaj peev xwm | |||||||||
| Hla lub txaj | mm | 630 | 800 | 940 | |||||
| Swing tshaj carriage | mm | 340 | 510 | 650 | |||||
| Max.length ntawm workpiece | mm | 750 1000 1500 2000 3000 4000 5000 6000 | |||||||
| Max. tig ntev | 600 850 1350 1850 2850 3850 4850 5850 | ||||||||
| Pan ntawm kev taw qhia | 550 | ||||||||
| Spindle | |||||||||
| Spindle qhov ntswg | C11 | ||||||||
| Spindle bore | 100 | ||||||||
| Taper qhov ntawm spindle | 1:20/120 | ||||||||
| Ntau yam ntawm spindle speeds | r / min | Tsawg dua los yog sib npaug li 1000 | Tsawg dua los yog sib npaug li 800 | ||||||
| Tsis muaj spindle speeds | CK: Stepless / CKP: Stepless in2gears / CKJ: Phau Ntawv Qhia 12 (6163: Phau Ntawv Qhia 18) | ||||||||
| Center qhov siab ntawm txaj | mm | 315 | 400 | 470 | |||||
| Chuck | mm | 325 | |||||||
| Pub | |||||||||
| Min.feed nce | mm | 0.001/0.001 | |||||||
| Ceev ceev | hli/min | 3000/6000 | |||||||
| Max.travel of X | mm | 390 | 475 | 475 | |||||
| Turret | |||||||||
| Turret ua haujlwm txoj haujlwm | V4 (V6 / H6 / H10 xaiv tau) | ||||||||
| Indexing lub sij hawm | s | 2.4 | |||||||
| indexing repeatability | mm | 0.008 | |||||||
| Tshooj ntawm lub cuab yeej shank | mm | 32X32 | |||||||
| Tail Tshuag | |||||||||
| Dia. ntawm tailstock quill | mm | 100 | |||||||
| Taug kev ntawm tailstock quill | mm | 250 | |||||||
| Taperhole ntawm tailstock | Morse 5 | ||||||||
| Lwm tus | |||||||||
| Workpiece raug | TSI 6 ~ 7 | ||||||||
| Nto roughness | μm | Rau 1.6 | |||||||
| Lub zog loj | kws |
11 |
|||||||
| Tshuab dhos loj | kg | 5100 5300 5700 6100 7100 8400 9400 10400 | |||||||
| Ntev | mm | 3200 3445 3895 4390 5390 6580 7580 8580 | |||||||
| Dav | mm | 1800 | |||||||
| Qhov siab | mm | 1880/1980/2010 | |||||||
| CNC System | 0i-mate/GSK980TD | ||||||||
